| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan Etern Optoelectronics |
| Certification: | RoHS |
| Model Number: | MPO Pre-terminated optical fiber |
| Minimum Order Quantity: | 10PCS |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Features: | Easy For TX And RX Identify And Install, Can Choose From MPO And MTP. | Applications: | Precision Communication Device, QSFP Component, Data Center Wiring,40G/100G&10G/40G Connection Application. |
|---|---|---|---|
| Type: | MM-ST/MM-2F-LC/MM-FC/MM-SC/SM-ST/SM-2F-LC/SM-FC/SM-SC | Operating Temp.(℃): | -20 - +70 |
| Testing Wavelength(nm): | 1310/1550, 850/1300 | Color: | Yellow |
| High Light: | MPO mode conditioning patch cord,yellow mode conditioning patch cord,4 core fiber patch cord 10 meter |
||

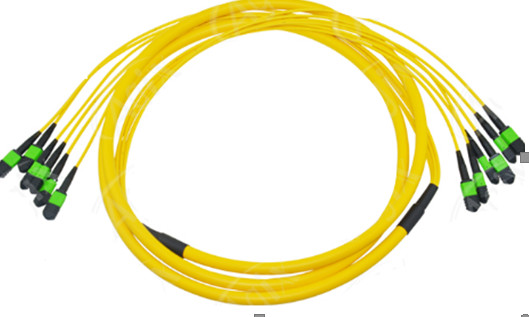

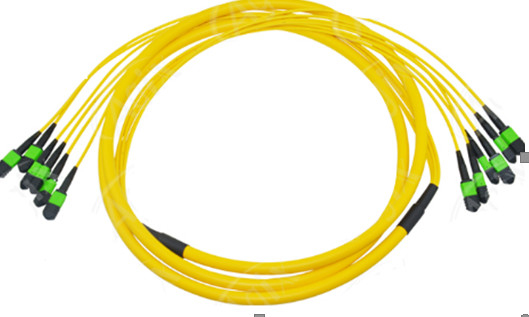

Yellow MPO Mode Conditioning Patch Cord 10 Meter 4 Core
Etern MPO Pre-terminated optical fiber is beneficial for improving the infrastructure environment of data center and optical systems. Connecting via crossing through MDA, HDA and EDA interzone module box, the high-efficiency plug and play frame greatly decreases the cost of initial installation and dailly maintenance.
Etern pre-terminated optical fiebr adopted the high quality fiber optic cable and MPO assembly, has the features of low insertion loss and high return loss which can fit well with high-speed network with strict requirements.
Features
1. Provide 12 to 144 core optical diber connection
2. 4,8,12,24 core MPO connector, decrease the possibility of breakdown and reduce wiring space
3. Can smoothly upgrade from 10G to 40G/100G network transmission, and also support 100G delay transmission
4. Can choose from a variety of fiber scales according to customer’s requirements
Applications
1. Backbone array fiber optic cable
2. Optical switch interface connection
3. Data center wiring
Performance Specification
| Optical Fiber Type | Single Mode | Multi-mode | ||
| Insertion Loss | Typ.(dB) | 0.35 | 0.35 | |
| Max.(dB) | 0.75 | 0.75 | ||
| Low Insertion Loss | Typ.(dB) | 0.1 | 0.1 | |
| Max.(dB) | 0.35 | 0.35 | ||
| Return Loss | ≥60(APC) | ≥200(PC) | ||
| ≥50(PC) | ||||
| Male/Female Connector | Male Connector: With pin | Female connector:Without pin | ||
| Durability(dB) | ≤0.2 500times | |||
| Operation Temp.(℃) | -20 - +70 | |||
| Test Wavelength(nm) | 1310 | 850 | ||
Ordering Information
|
Patch Cords |
- | □□□/□□□ | □ |
□□ - |
□□□ | - | □ | □ | □ | - | □ | □ | □ | |
|
MPO/MTP Patch Cords |
A Side Connector |
Inserttion Loss |
A Side MPO/MTP Connector |
B Side Connector |
Inserttion Loss |
B Side MPO/MTP Connector |
Fiber Length |
Fiber Type | Number of Cores of Fiber | Fiber Specification | Standard | |||
| 1=100GHz |
G=Typical Insertion Loss |
16=16ch | C21=C21 | 05=0.5m 05=0.5m 05=0.5m | 1=None | D=Demux | R=Rack | |||||||
| 5=50GHz |
E=Low Insetion Loss |
32=32ch | C215=C21.5 | 10=1.0m 10=1.0m 10=1.0m | 2=FC/UPC | MD=Mux & Demux | ||||||||
| 40=40ch | …… | 15=1.5m 15=1.5m 15=1.5m | 3=FC/APC | |||||||||||
