| Place of Origin: | China |
|---|---|
| Brand Name: | Wuhan ETERN Optoelectronics |
| Certification: | RoHS |
| Model Number: | MTP/MPO Branch Cable |
| Minimum Order Quantity: | 2PCS |
| Price: | Negotiable |
| Packaging Details: | Single item |
| Payment Terms: | T/T |
| Supply Ability: | 100k per month |
| Fiber Type: | SM Or MM | Application: | FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments |
|---|---|---|---|
| Length: | Customized | Insertion Loss: | ≤0.35dB |
| Connector: | SC LC FC ST MU | Material: | PVC,LSZH,PVC/LSZH |
| Product Name: | Fiber Optic Patch Cord | Color: | Aqua Or Cusomized |
| Wavelength: | 850 Nm | Fiber Count: | Duplex |
| Quality Control: | 100% Test Before Shipping | Polish: | PC/UPC/APC |
| Real Factory: | Yes | ||
| High Light: | MM OM4 Branch Patch Cord,1m 8core Branch Patch Cord,MTP Optical Fiber Patch Cord |
||

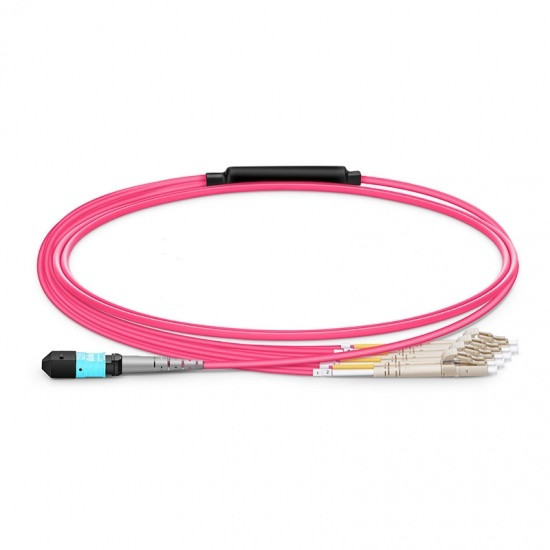

ETERN MPO transfer LC branch cable is mainly used to connecting 40G QSFP+ optical module and 10G SPF+ optical module, transmitting and receiving of MPO terminal 4 channels array. Respectively connect optical port on SFP module via channel order, determine the fiber channel function at LC port in advance, and positioning with duplex chlips in order to the users can connect the devices easily.
Features
Small size, easy connection, LC duplex fixation, easy for TX and RX identify and install, can choose from MPO and MTP.
Application
High density fiber optic cabling system, high integrated equipment and devices, precision communication device, QSFP component, data center wiring,40G/100G&10G/40G connection application.
Technical Specification
| Construction | Description |
| Fiber Count | 8-144 Fibers |
| Fiber Mode | Single Mode: OS2 9/125µm Multimode: OM4 50/125µm, OM3 50/125µm |
| Fiber Brand | Corning ClearCurve® multimode fiber and SMF-28® Ultra optical fiber |
| Connector A | MTP® Female, Male; MPO Female, Male |
| Connector Brand | US Conec MTP®, Senko MPO Plus® |
| Connector B | LC, SC, FC, ST |
| Polarity | Type A, Type B, Type C |
| Cable Jacket Ratings | Plenum (OFNP) Low Smoke Zero Halogen (LSZH) Riser (PVC) |
| Color Codes | MTP® | MPO | LC |
| Cable Jackets | OS2: Yellow OM4: Magenta OM3: Aqua |
OS2: Yellow OM4: Magenta OM3: Aqua |
OS2: Yellow OM4: Magenta OM3: Aqua |
| Connectors | OS2: Green OM4/OM3: Aqua |
OS2: Green OM4/OM3: Aqua | Single Mode: UPC Blue, APC Green Multimode: Beige |
| Boots | 8 Fibers: Grey 12 Fibers: Black 24 Fibers: Red |
8/12/24 Fibers: Black | Single Mode: UPC Blue, APC Green Multimode: Beige |
| Construction | Description | |
| Wavelength (nm) | Single Mode: 1310/1550 Multimode: 850/1300 | |
| Transmission Distance | OM4: 150m at 40/100G, 400m at 10G OM3: 100m at 40/100G, 300m at 10G | |
| Connector | MTP®/MPO | |
| Fiber Mode | Single Mode | Multimode |
| Attenuation (dB/km) | ≤0.32 at 1310nm | ≤2.3 at 850nm |
| ≤0.18 at 1550nm | ≤0.6 at 1300nm | |
| Insertion Loss (dB) | ≤0.35 | ≤0.35 |
| Return Loss (dB) | APC: ≥60, UPC: ≥50 | UPC: ≥20 |
| Connector | LC/SC/FC/ST | |
| Fiber Mode | Single Mode | Multimode |
| Insertion Loss (dB) | APC: ≤0.3, UPC: ≤0.2 | UPC: ≤0.2 |
| Return Loss (dB) | APC: ≥60, UPC: ≥50 | UPC: ≥30 |
| Physical Properties | Description |
| Cable Diameter * | 3.0mm |
| Breakout Leg | Duplex: 2.0mm, Simplex: 0.9/2.0mm |
| Breakout Length | 0.3/0.5m |
| Minimum Bend Radius | Single Mode: 10.0mm, Multimode: 7.5mm |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
